VHW countersink - Z=3
Product

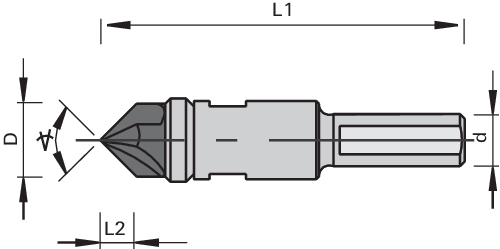

Drawing
-
- Solid Tungsten Carbide
- MEC
Article
Description
Machine / Application
- CNC machines
- For subsequent countersinking of predrilled holes
- For use in the drilling units of CNC machines
- Also suitable for milling of V-grooves, ornamental grooves and letters as well as for chamfering of solid wood and wood-based panel materials
Design
- VHW cutting head Z=3
- Special grind
- Shank with clamping surface and length adjusting screw
- For mechanical feed
- Righthand rotation
Advantages
- VHW cutting edge
- Good concentricity and drilling properties due to special geometry
Notes
- recommended RPM for countersinking: 2,500 - 3,000 min-1
|
Ø D
[mm] |
L2
[mm] |
Ø d
[mm] |
L1
[mm] |
Z | L/R |
∡ of point
[°] |
Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
|||||||||
| 18 | 9,0 | 10 | 70 | 3 | R | 90 | 80487758 | ||
