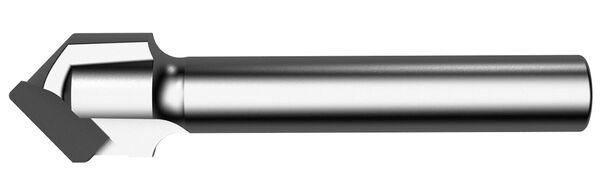

V-Groove Cutter DP

Portable routers, hand-operated CNC portable routers (e.g. Shaper Origin), portable CNC router (e.g. Goliath CNC)
90° V groove cuttings or profile grooves (R=0.6 in the bottom of the groove) as well as chamfering (45°) in solid wood, wood-based materials and thermosets

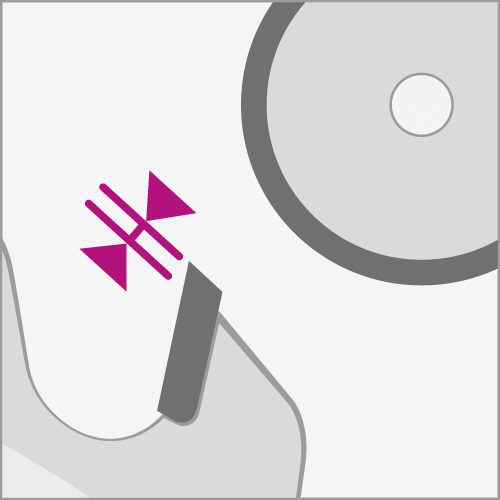

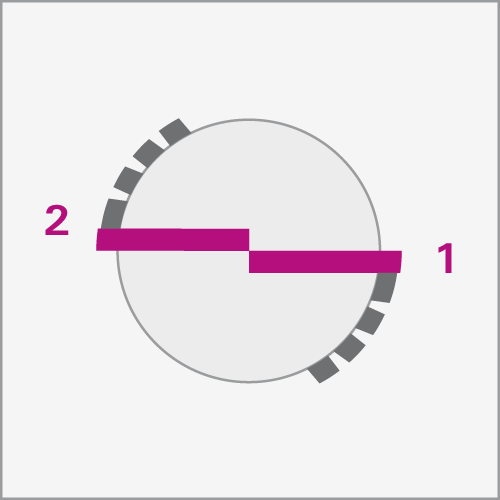

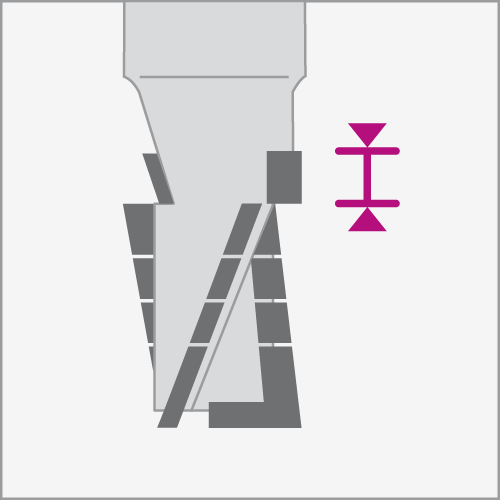

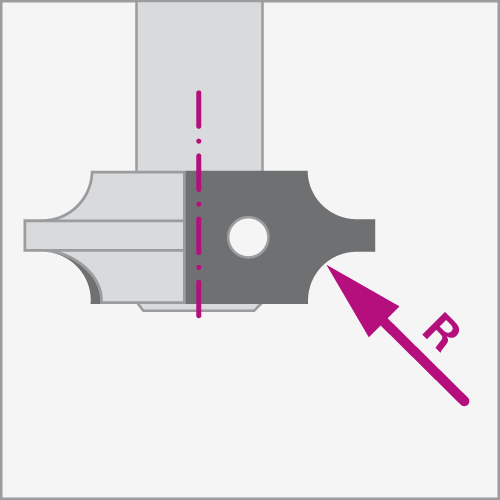

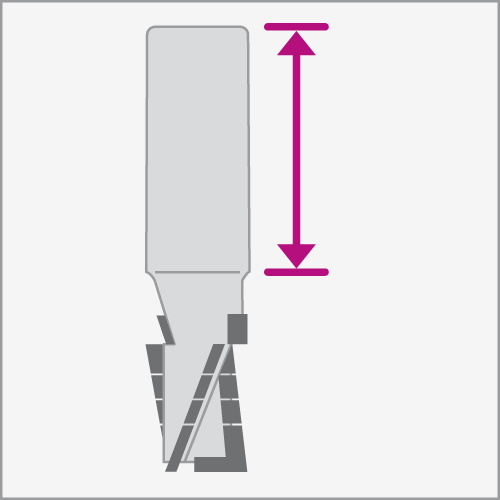

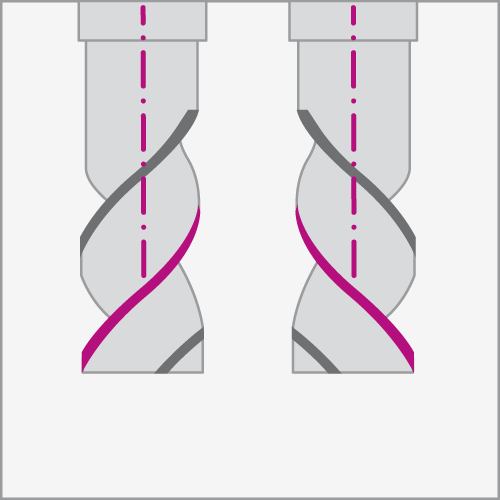

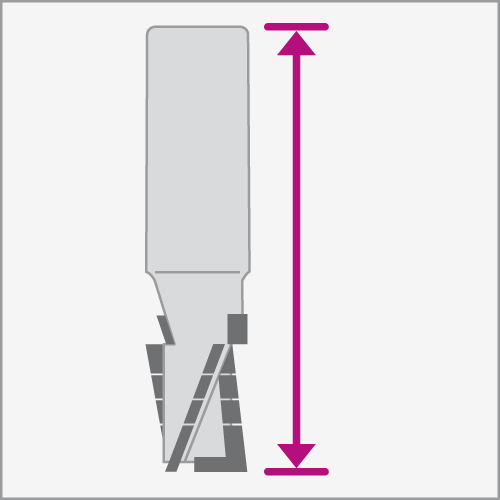

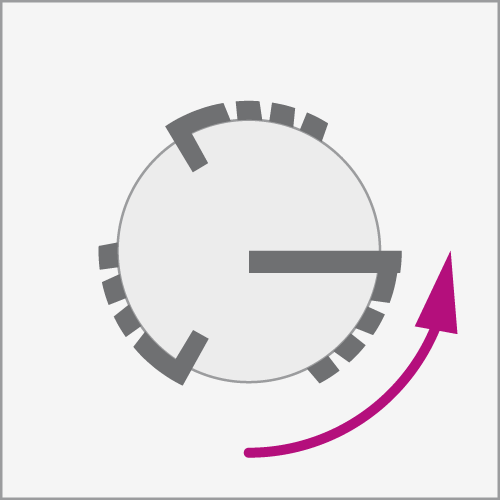

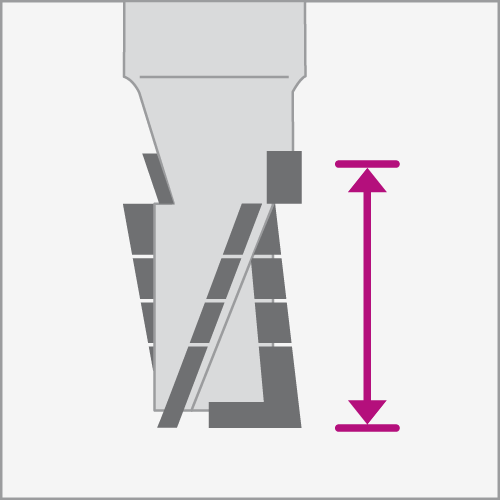

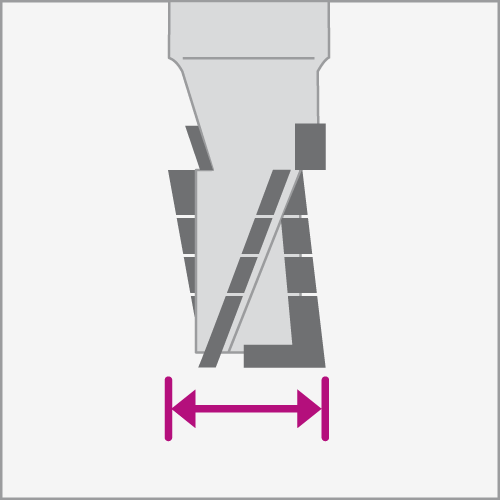

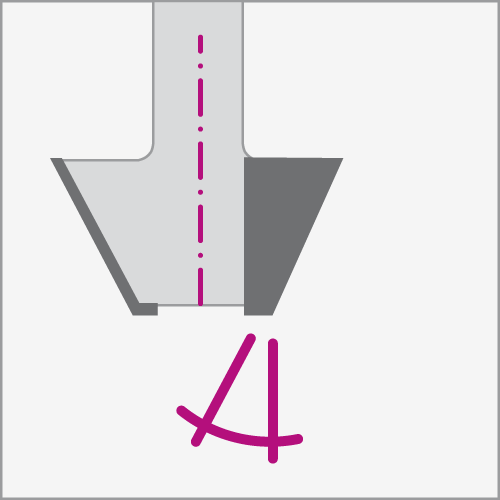

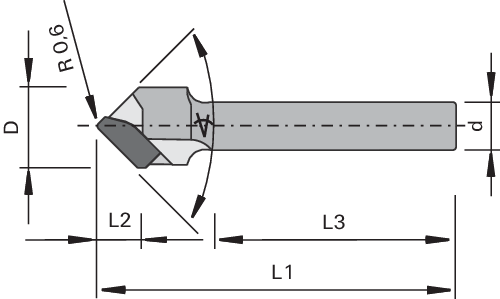

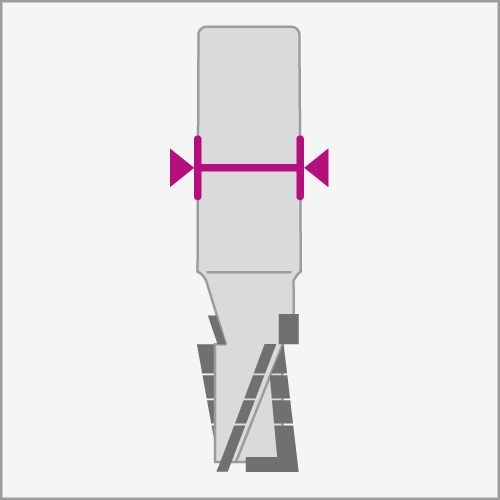

	R [mm]	Ø D [mm]	L2 [mm]	Ø d [mm]	L3 [mm]	L1 [mm]	Z	Resharpening area [mm]	L/R	∡ of point [°]	Ident-No.	Comp./ Inqu.
Dimensions entered are not listed? Please contact our application consulting . available from stock available on short notice Delivery time on request
	0,6	14	7,0	8,0	41.2	60	1	2	R	90	187846	\|
