Clamping Systems Ø 110 mm
Product

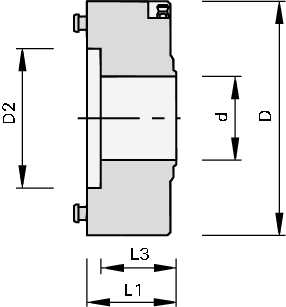

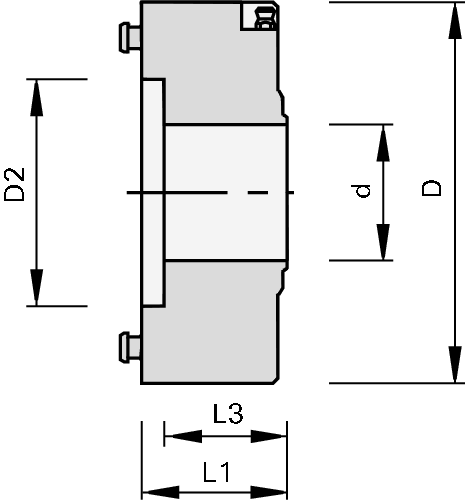

Drawing
Article
Description
Machine / Application
- double end tenoners
- through feed machines
- for mounting of tools with bore and for combination with mounting flanges Ø 110 mm
Design
- hardened tool mounting area
- n max = 9,000 min-1
Advantages
- excellent balance quality
- long tool life
- consistent runout accuracy after each tool change
- minimization of setup-times thanks to easy and quick tool change
- maintenance-free and protected from dust
Notes
- for clockwise and counter-clockwise rotation
- indicate machine type and shaft design when placing an order
- required tool adapters Class-No. 997370
- for changing the tools the pneumatic part Ident-No. 058250 is necessary
- operational pressure 6 bar
- included in delivery: clamping part incl. cap for attachment on the machine spindle
|
Ø d
[mm] |
Ø D
[mm] |
Ø D2
[mm] |
L1
[mm] |
L3
[mm] |
DKN
[mm] |
Machine/Type | Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
|||||||||
| 30 | 110 | 50 | 63 | 47.5 | 8x3 | 172399 | |||
| 30 | 110 | 50 | 63 | 47.5 | 8x3 | Homag, Lehbrink, Torwegge, SPA, Wilmsmeyer | 160836 | ||
| 35 | 110 | 50 | 63 | 47.5 | 10x4 | Spanevello | 162599 | ||
