Adjustment unit - ecoline - flooring
Product

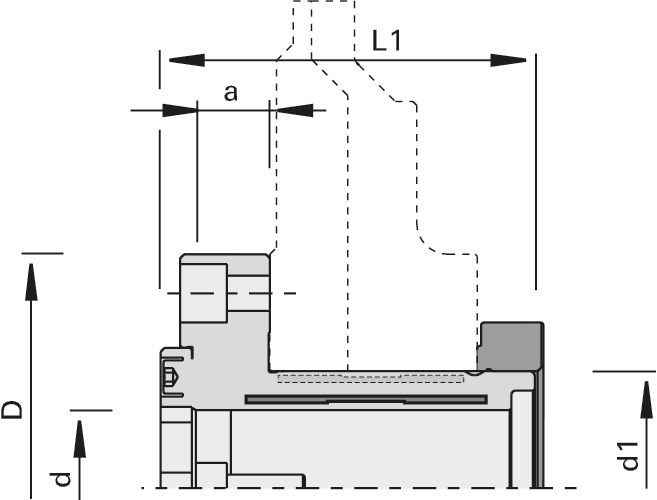

Drawing
Article
Description
Machine / Application
- through-feed machines
- double end tenoners
- for profiling of the longitudinal and transverse profiles in machining of flooring (laminate, parquet and LVT)
Design
- unit for adjustable 2-piece profile tool
- single (184765) and double (184770) pressure zone
- impressurement hydro bushing radial
Advantages
- system independent from tools, reusable
- adjustable from top via adjustment nut
Notes
- starter model
- version without tool
- included in delivery: bushing, nut, spring assembly
|
a
[mm] |
L1
[mm] |
Remarks | Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
|||||
| 20 | 98 | with two pressure zones | 184770 | ||
| 20 | 98 | with one clamping zone | 184765 | ||
