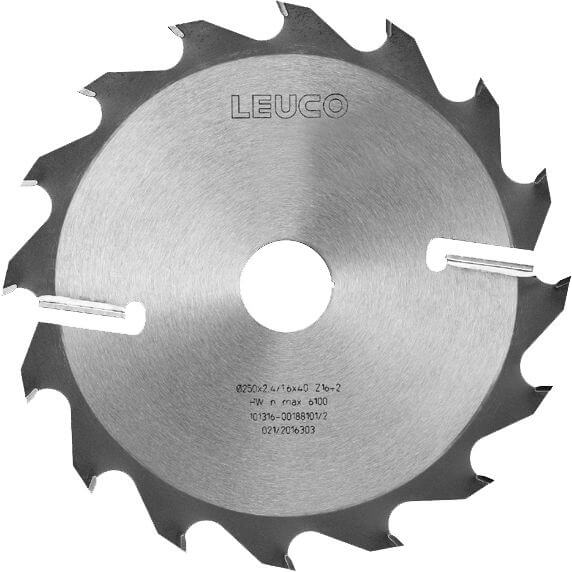

Gang-Rip Saw Blades HW with HW-rakers - solid "F"
Product

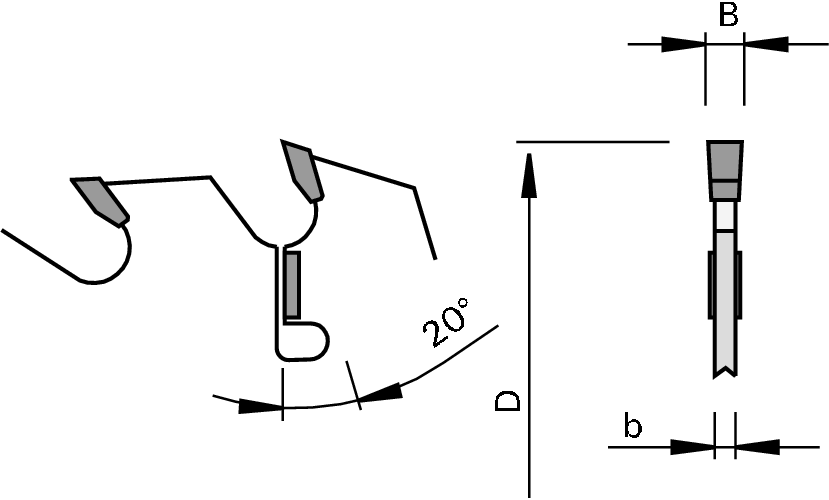

Drawing
-
-
- Tungsten Carbide [HW]
Article
Description
Machine / Application
- gang-rip saws with one or two shafts
- for longitudinal cuts in wet and dry soft woods
Design
- tooth configuration: flat "F"
- cutting material: HW HL Board 20
Advantages

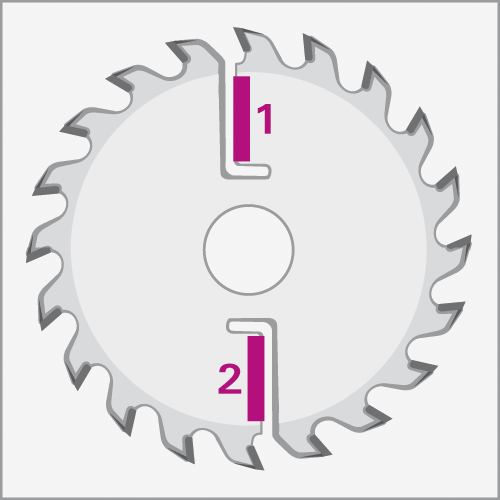

- tungsten carbide rakers prevent the sides of the wood from making contact with the steel plate
Notes
- for inquiries / orders enclose specification sheet (see appendix)
- for cutting height > 50 mm
|
Ø D
[mm] |
B
[mm] |
b
[mm] |
Ø d
[mm] |
Ø dmax
[mm] |

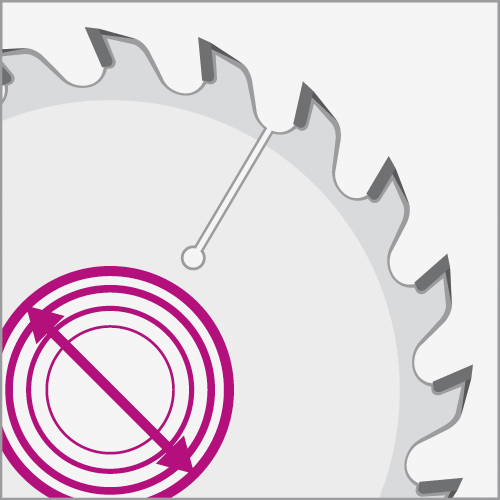

Max. flange Ø
[mm] |
Z |
Number of rakers
[pc.] |
Hook angle
[°] |
Tooth geometry | Cutting quality* | LEUCODUR | Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
||||||||||||||
| 400 | 4,2 | 3 | 50 | 100 | 150 | 24 | 2+2 | 20 | F | HL Board 20 | 189272 | |||
| 450 | 4,2 | 3 | 50 | 100 | 160 | 24 | 2+2 | 20 | F | ▲ | HL Board 20 | 189273 | ||
| 500 | 4,6 | 3.3 | 50 | 100 | 180 | 28 | 2+2+2 | 20 | F | HL Board 20 | 189274 | |||
