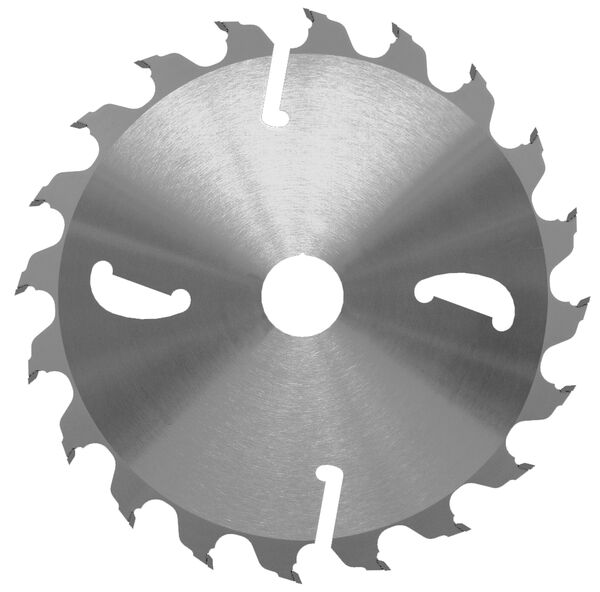

Gang-Rip Saw Blades HW with HW-rakers - solid "F"
Product

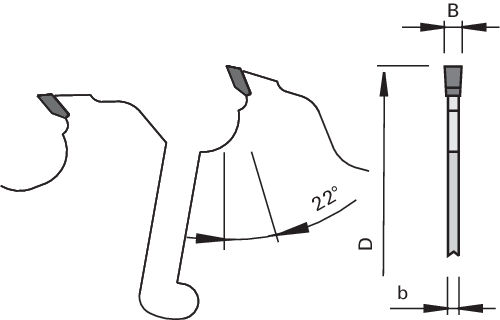

Drawing
-
-
- Tungsten Carbide [HW]
Article
Description
Machine / Application
- Gang rip machine with low feed rates
- Gang-rip machines with one or two shafts
- for longitudinal cuts in wet and dry solid woods
Design
- Tooth configuration: flat tooth "F"
- Cutting material: HW HL Board 20
- with internal and external HW rakers
Advantages
- tungsten carbide rakers prevent the sides of the wood from making contact with the steel plate
- optimal chip evacuation thanks to special design
- particularly robust design
Notes
|
Ø D
[mm] |
B
[mm] |
b
[mm] |
Ø d
[mm] |
Ø dmax
[mm] |
Max. flange Ø
[mm] |
Z |
Number of rakers
[pc.] |
Hook angle
[°] |
Tooth geometry | LEUCODUR | Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
|||||||||||||
| 300 | 3,4 | 2 | 50 | 90 | 130 | 20 | 2+2 | 22 | F | HL Board 20 | 80495223 | ||
| 350 | 4,0 | 2.6 | 50 | 100 | 140 | 20 | 2+2 | 22 | F | HL Board 20 | 80495224 | ||
| 400 | 4,4 | 3 | 50 | 100 | 150 | 24 | 2+2 | 22 | F | HL Board 20 | 80495225 | ||
| 450 | 4,8 | 3.2 | 50 | 100 | 160 | 24 | 4+2 | 22 | F | HL Board 20 | 80495226 | ||
| 500 | 5,0 | 3.4 | 50 | 100 | 180 | 24 | 4+2 | 22 | F | HL Board 20 | 80495227 | ||
| 550 | 5,2 | 3.6 | 50 | 140 | 180 | 24 | 4+2 | 22 | F | HL Board 20 | 80495228 | ||
| 600 | 5,8 | 4 | 50 | 140 | 180 | 24 | 4+2 | 22 | F | HL Board 20 | 80495229 | ||
| 630 | 6,0 | 4 | 50 | 140 | 180 | 24 | 4+2 | 22 | F | HL Board 20 | 80495230 | ||
| 650 | 6,0 | 4 | 50 | 140 | 180 | 24 | 4+2 | 22 | F | HL Board 20 | 80495231 | ||
