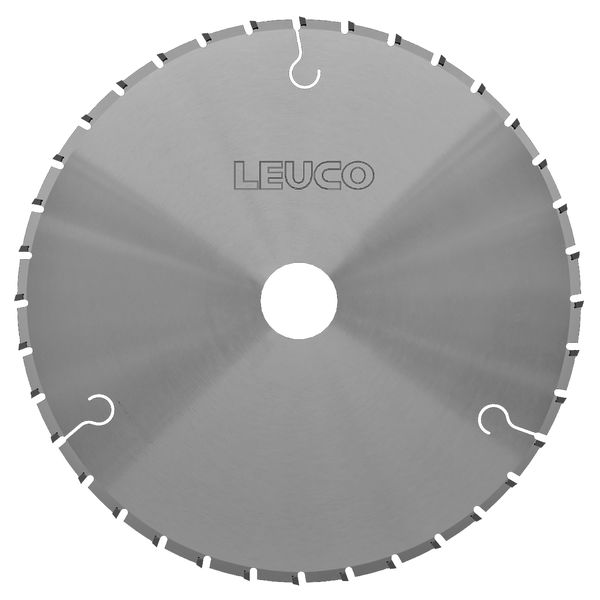

Clipping Saw Blades DP for edge trimming "HR" - nn-System DP flex

hardly perceivable noise level
highest productivity and economic efficiency thanks to extremely long edge lives due to DP-tipping
reduced cutting pressure thanks to hollow back tooth geometry

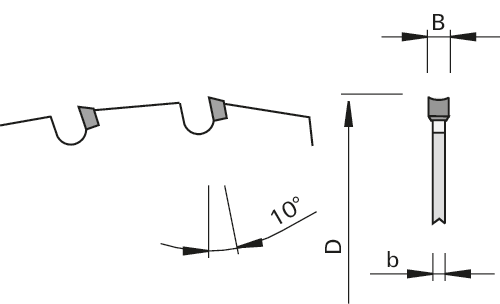

	Ø D [mm]	B [mm]	b [mm]	Ø d [mm]	Z	NL	Hook angle [°]	Tooth geometry	Machine/Type	Ident-No.	Comp./ Inqu.
Dimensions entered are not listed? Please contact our application consulting . available from stock available on short notice Delivery time on request
	100	2,5	2	22	20	2/4/30	10	HR	EBM, Felder, Lohmeyer	192543	\|
	100	2,5	2	32	30		10	HR	Brandt	192544	\|
	110	2,5	2	22	24		10	HR	Reich	192551	\|
	110	2,5	2	22	20		10	HR	Reich	192552	\|
	120	2,5	2	40	24	8/6/52	10	HR	Homag	192541	\|
	120	2,5	2	40	36	2x4/5,5/52	10	HR	Homag	192553	\|
	125	2,5	2	30	36	2x4/6,5/48	10	HR	Homag BAZ	192554	\|
	125	2,5	2	40	24	2x4/5,8/60	10	HR	Brandt	192549	\|
	140	2,5	2	16	36		10	HR	Ott	192545	\|
	160	2,5	2	22	36		10	HR	IMA	192546	\|
	160	2,5	2	22	48		10	HR	IMA	192547	\|
	160	2,5	2	30	24	2/7/42	10	HR	HOLZ-HER	192555	\|
	170	2,5	2	30	36	4/5,5/52	10	HR	Homag	192542	\|
	180	2,5	2	22	42		10	HR	IMA	192550	\|
	180	2,5	2	30	54	4/6/52	10	HR	Homag BAZ	192556	\|
	200	2,5	2	30	64	4/6,6/60 + 2/6,2/42	10	HR	IMA	192548	\|
