Dowel Bits VHW - topline
Product

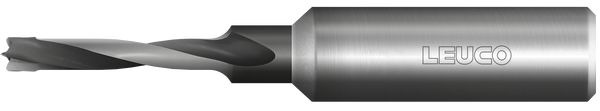

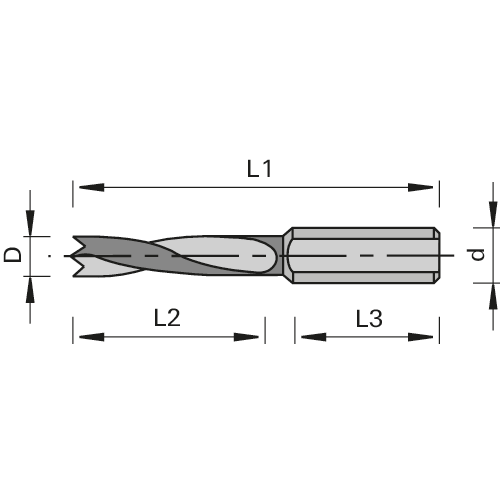

Drawing
-
-
- Solid Tungsten Carbide
- MAN
Article
Description
Machine / Application
- automatic boring machines
- CNC machining centers
- for chip-free drilling of dowel holes in solid woods and wood-based panels
Design
- special cutting edge geometry
- centering point
- boring part made from fine-grain solid tungsten carbide
- enhancement of the previous topline HW design
Advantages
- tool life increased up to twelvefold compared to traditional dowel bits thanks to special HW and special grinding
- chip-free hole edges thanks to special cutting edge geometry
- safe drilling thanks to centering point
- excellent chip evacuation thanks to optimized spiral design
Notes
- adjusting screw Ident-No. 001600 M5x10 DIN 551 for precise length adjustment included in delivery
- adjusting screw Ident-No. 186017 M5x11,5 for Weeke quick clamping chuck must be ordered separately
- clamping elements: combi chuck, quick-change chuck
- other dimensions possible; price and delivery time on request
|
Ø D
[mm] |
L2
[mm] |
Ø d
[mm] |
L3
[mm] |
L1
[mm] |
L/R | Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
||||||||
| 5 | 30 | 8,0 | 19 | 57.5 | L | 185746 | ||
| 5 | 30 | 8,0 | 19 | 57.5 | R | 185745 | ||
| 4 | 20 | 10 | 27 | 57.5 | L | 185748 | ||
| 4 | 20 | 10 | 27 | 57.5 | R | 185747 | ||
| 5 | 25 | 10 | 27 | 57.5 | L | 185750 | ||
| 5 | 25 | 10 | 27 | 57.5 | R | 185749 | ||
| 6 | 25 | 10 | 27 | 57.5 | L | 185752 | ||
| 6 | 25 | 10 | 27 | 57.5 | R | 185751 | ||
| 8 | 25 | 10 | 27 | 57.5 | L | 185754 | ||
| 8 | 25 | 10 | 27 | 57.5 | R | 185753 | ||
| 10 | 30 | 10 | 27 | 57.5 | L | 185756 | ||
| 10 | 30 | 10 | 27 | 57.5 | R | 185755 | ||
| 4 | 20 | 10 | 30 | 70 | L | 185758 | ||
| 4 | 20 | 10 | 30 | 70 | R | 185757 | ||
| 5 | 35 | 10 | 30 | 70 | L | 185760 | ||
| 5 | 35 | 10 | 30 | 70 | R | 185759 | ||
| 6 | 35 | 10 | 30 | 70 | L | 185762 | ||
| 6 | 35 | 10 | 30 | 70 | R | 185761 | ||
| 8 | 35 | 10 | 30 | 70 | L | 185764 | ||
| 8 | 35 | 10 | 30 | 70 | R | 185763 | ||
| 10 | 35 | 10 | 30 | 70 | L | 185766 | ||
| 10 | 35 | 10 | 30 | 70 | R | 185765 | ||
