Dowel Bits DP
Product

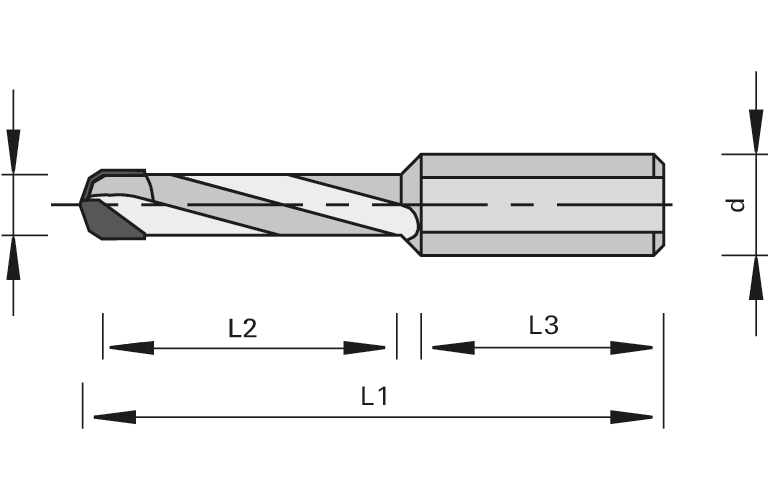

Drawing
-
- Polycrystalline diamond [DP]
- MEC
Article
Description
Machine / Application
- automatic boring machines
- CNC machining centers
- for chip-free drilling in raw and laminated panels and composite materials
Design
- special cutting edge geometry, 2 DP rakers which form a double chamfer
- spiral without back guide
- DP-tipped
Advantages
- long edge life when machining extremely abrasive materials
- chip-free hole edges thanks to special cutting edge geometry
Notes
- adjusting screw Ident-No. 001600 M5x10 DIN 551 for precise length adjustment included in delivery
- adjusting screw Ident-No. 186017 M5x11,5 for Weeke quick clamping chuck must be ordered separately
- clamping elements: combi chuck, quick-change chuck
|
Ø D
[mm] |
L2
[mm] |
Ø d
[mm] |
L3
[mm] |
L1
[mm] |
Z | L/R | Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
|||||||||
| 8 | 27 | 10 | 26 | 57.5 | 2 | R | 183008 | ||
| 8 | 27 | 10 | 26 | 57.5 | 2 | L | 183009 | ||
| 8 | 35 | 10 | 30 | 70 | 2 | R | 183012 | ||
| 8 | 35 | 10 | 30 | 70 | 2 | L | 183013 | ||
| 10 | 35 | 10 | 30 | 70 | 2 | L | 183053 | ||
| 10 | 35 | 10 | 30 | 70 | 2 | R | 183054 | ||
