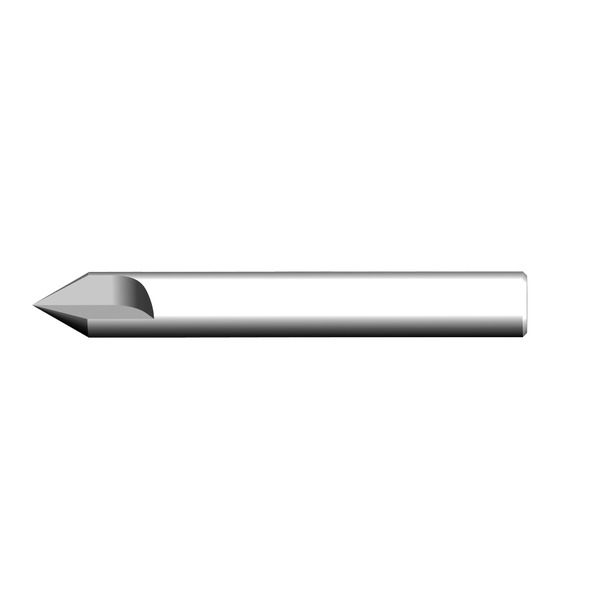

185793 - Folding Chamfering Shank-Type Cutters VHW - Z=2
Product

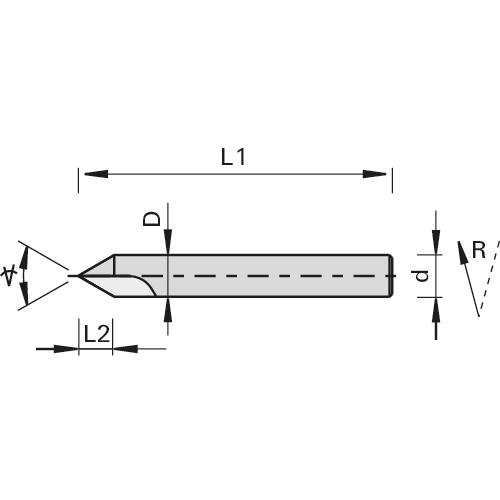

Drawing
-
- Solid Tungsten Carbide
- MEC
Technical data
Description
Machine / Application
- CNC 5-axis routers
- for picking of internal corners especially in small, narrow cut-outs
- for chamfering, for ornamental grooves and folding cuts in solid wood and wood-based panels
Design
- throughout cylindrical solid carbide body
- for mechanical feed
- righthand rotation
- n max = 20,000 min-1
Advantages
- Angle of attack for corner scribing: 45°
Notes
- clamping elements: we recommend the use of the tools in high precision clamping chucks such as hydro expansion chucks "ps-System", TRIBOS or heat shrink-fit chucks
| Feature | Value | |
|---|---|---|
| Ø D = Cutting circle diameter | 16 [mm] | |
| L2 = Cutting width | 14 [mm] | |
| Ø d = Shank diameter | 16 [mm] | |
| L1 = Total length | 120 [mm] | |
| Z = No. of teeth | 2 | |
| L/R = cutting direction | L | |
| L = Delivery Status | ||
| Machine/Type | Scheer | |
|
Dimensions entered are not listed?
available from stock |
||
