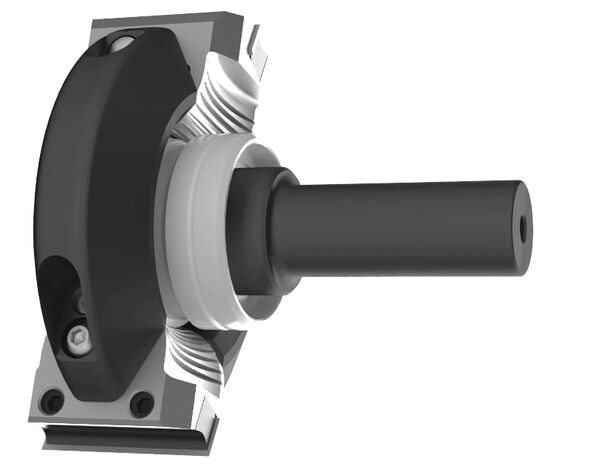

Chamfering Cutterheads HW pivoting

Product

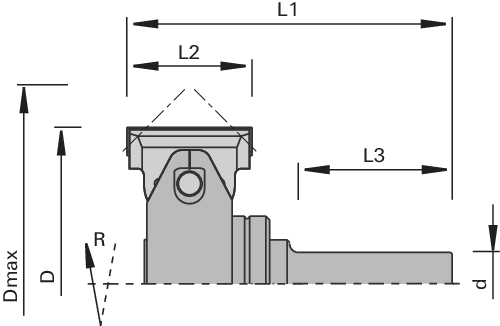

Drawing

  • Tungsten Carbide [HW]
  • MEC

Article

Description

Machine / Application

  • CNC routers
  • for jointing, chamfering and panel raising in solid wood and wood-based materials

Design

  • cutting edges parallel to cutter axis
  • chamfer angle 81-0-59 degrees
  • n max = 8,000 rpm

Advantages

  • synchronous adjustment via adjusting wheel
  • easy handling
  • large adjustment range

Notes

  • sense of rotation according to VDMA 8849

Table- and picture caption ...

Ø D
[mm] 		Ø Dmax
[mm] 		L2
[mm] 		Ø d
[mm] 		L3
[mm] 		L1
[mm] 		Z L/R Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

125 147.18 50 25 60 130 2 R 80506128
|
