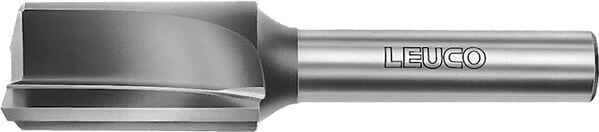

Router Bits HW-tipped - face cutting

routers
for jointing, rabbeting, grooving and copying in hard and exotic woods and wood-based panels

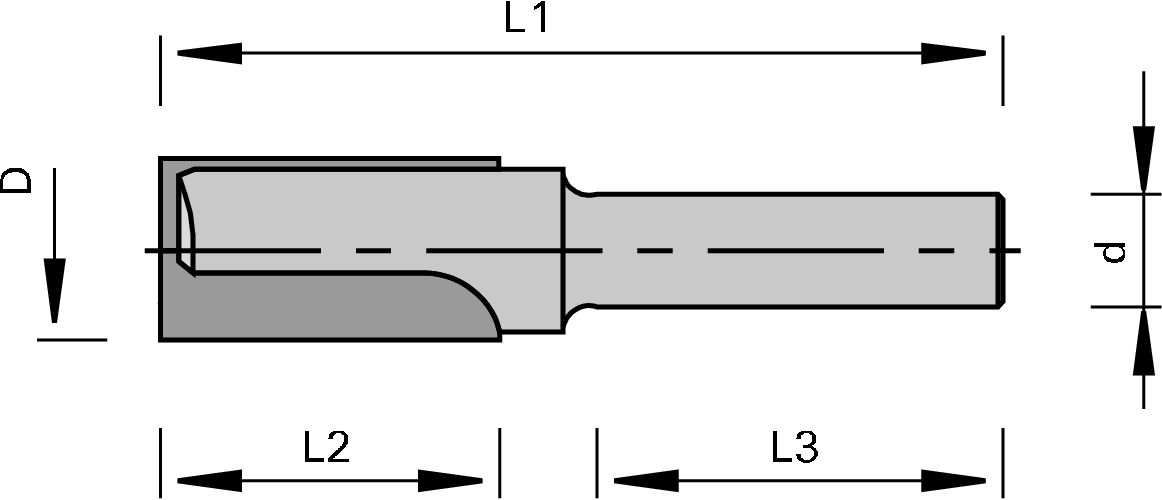

	Ø D [mm]	L2 [mm]	Ø d [mm]	L3 [mm]	L1 [mm]	Z	L/R	Ident-No.	Comp./ Inqu.
Dimensions entered are not listed? Please contact our application consulting . available from stock available on short notice Delivery time on request
	10	23	10	35	70	2	R	160336	\|
	12	23	10	35	70	2	R	160337	\|
	12	26	12	40	72	2	R	006229	\|
	14	28	12	40	76	2	R	006231	\|
	16	35	12	40	90	2	R	180775	\|
	25	41	12	40	92	2	R	006240	\|
