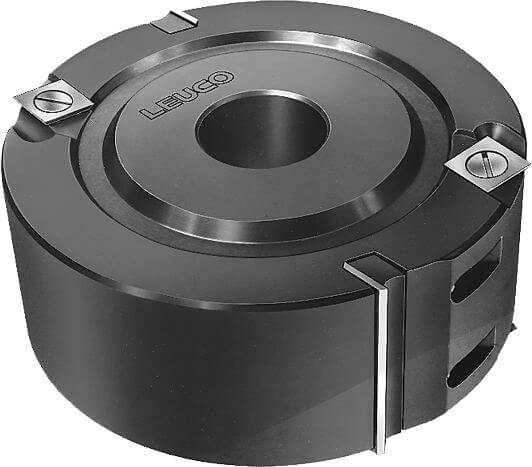

Jointing and Rabbeting Cutterheads HW without shear angle

Product

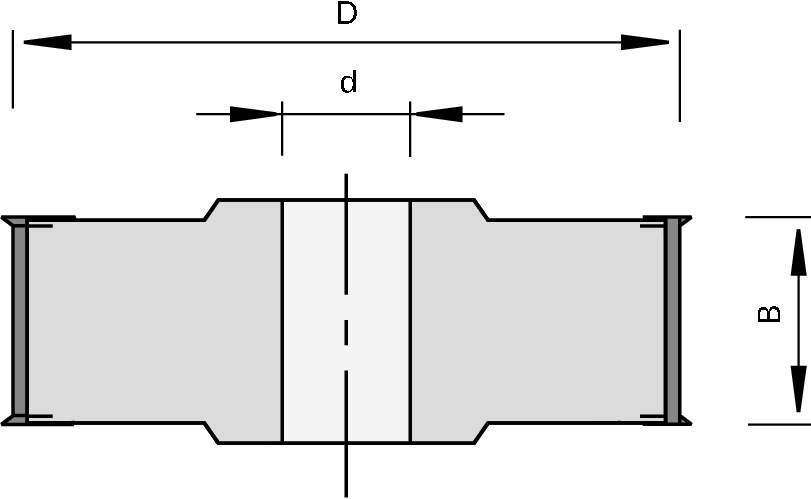

Drawing

  • Tungsten Carbide [HW]
  • MAN

Article

Description

Machine / Application

  • table shapers
  • for jointing and rabbeting in solid woods and wood-based panels

Design

  • cutting edges parallel to cutter axis
  • cutting material: HW HL Board 05

Advantages

Notes

  • application against feed

Table- and picture caption ...

Ø D
[mm] 		B
[mm] 		Ø d
[mm] 		Z DKN
[mm] 		nmin-nmax
[min-1] 		Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

85 50 30 2+4 9000-15500 167038
|
100 30 30 2+4 7700-13300 167039
|
100 50 30 2+4 7700-13300 167040
|
125 30 30 2+4 6100-10500 167041
|
125 50 30 2+4 6100-10500 167043
|
125 50 35 2+4 10x4 6100-10500 167044
|
125 50 30 4+4 6100-10500 167046
|
125 50 35 4+4 10x4 6100-10500 167047
|
125 50 40 4+4 12x5 6100-10500 167048
|
