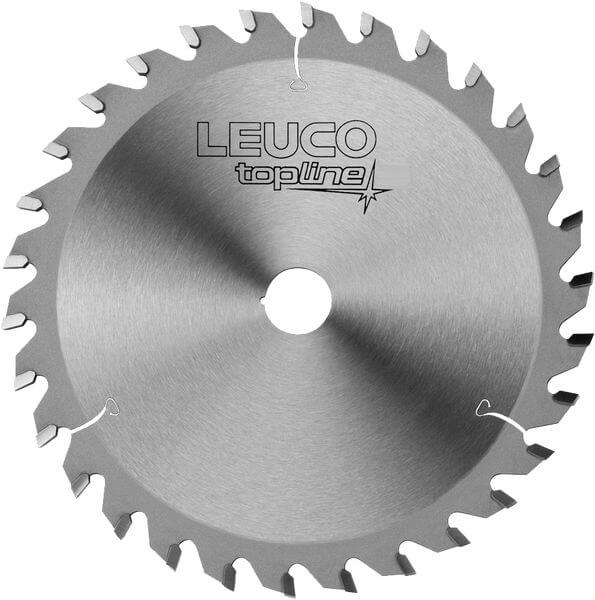

Scoring Saw Blades HW "KO-F"
Product
Drawing
-
-
- Tungsten Carbide [HW]
Article
Description
Machine / Application
- panel sizing saws with scoring device
- for scoring of plastic-laminated panels
Design
- tooth configuration: conical-flat "KO-F"
- cutting material: HW HL Board 04 plus
Advantages
- quick adjustment
- universally applicable
- optimum cutting quality thanks to improved runout accuracy
- reduction of the scoring depth
Notes
- height adjustable to kerf of main saw blade
- 1 mm scoring depth = 0.17 mm cutting width
- optimum scoring depth 1.0 - 2.0 mm
|
Ø D
[mm] |
B
[mm] |
b
[mm] |
Ø d
[mm] |
Z | NL |
Hook angle
[°] |
Tooth geometry | LEUCODUR | Machine/Type | Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
||||||||||||
| 180 | 6,7-7,5 | 4.4 | 20 | 30 | 8 | KO-F | HL Board 04 plus | Anthon | 192713 | |||
| 200 | 6,7-7,5 | 4.4 | 20 | 34 | 2/11/66 | 8 | KO-F | HL Board 04 plus | Schelling | 192714 | ||
| 200 | 4,3-5,1 | 3.2 | 50 | 36 | 2/7/80 | 8 | KO-F | HL Board 03 | KDT | 80438316 | ||
| 220 | 3,25-4,0 | 2.4 | 45 | 60 | 8 | KO-F | HL Board 04 plus | Holzma HPS 320 | 192715 | |||
