Scoring Saw Blades HW "HR-FA" - nn-System
Product

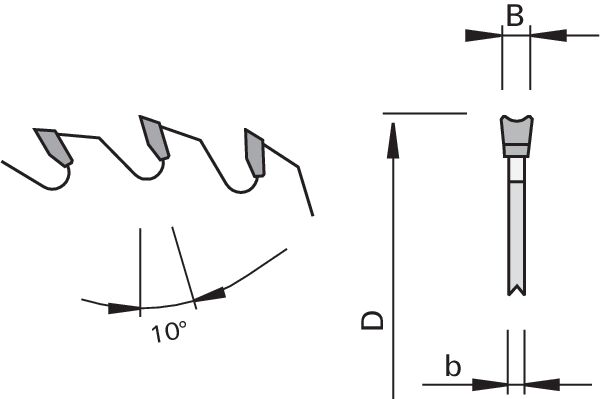

Drawing
-
-
- Tungsten Carbide [HW]
-
Article
Description
Machine / Application
- panel sizing saws with controllable scoring device
- For chip-free scoring of wood-based materials intended for postforming, whether they are plastic-laminated, paper-laminated or veneered
Design
- Tooth configuration: hollow-back with chamfer "HR-FA"
- Cutting material: HW HL Board 04 plus
Advantages
- Excellent cut quality on all standard coatings
- The long edge life ensures the necessary productivity and economic efficiency
Notes
- Cutting width is consistently 0.32 mm wider than the main saw blade
|
Ø D
[mm] |
B
[mm] |
b
[mm] |
Ø d
[mm] |
Z |
Hook angle
[°] |
Tooth geometry | LEUCODUR | Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
||||||||||
| 280 | 5,1 | 3.5 | 45 | 60 | 10 | HR-FA | HL Board 04 plus | 80507464 | ||
